Trusting certificates issued by private CAs

Some Server Workloads use certificates issued by private Certificate Authorities (CAs), which aren’t publicly trusted. Agent Proxy, by default, doesn’t trust certificates issued by such private CAs and won’t connect to these workloads.

This article describes the steps required to configure Edge Components to establish trust with these certificate authorities.

Add a private CA to an environment

The following sections describe how to add a private CA in different environments:

Kubernetes
AWS ECS
Virtual machine

Kubernetes

To have your private CAs trusted, pass them as the agentProxy.trustedCertificates parameter in the Aembit Helm chart. This parameter should be a base64-encoded list of PEM-encoded certificates.

The resulting Helm command looks like this (remember to replace your tenant ID and other parameters):

helm install aembit aembit/aembit \
  --create-namespace -n aembit \
  --set agentProxy.trustedCertificates=LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0...

Volume-mounted certificates

If your Kubernetes deployment disallows privilege escalation or requires a read-only filesystem, you need to include all trusted certificates through a volume.

To include trusted certificates as a volume, follow these steps:

Define a ConfigMap with the key ca-certificates.crt. Complete this step before deploying either the Aembit Helm chart or your Client Workload Pod.

apiVersion: v1
kind: ConfigMap
metadata:
  name: <certs>
data:
  # Certificates should be PEM-encoded
  ca-certificates.crt: |
    -----BEGIN CERTIFICATE-----
    MIIFmzCCBSGgAwIBAgIQCtiTuvposLf7ekBPBuyvmjAKBggqhkjOPQQDAzBZMQsw
    ...

Deploy your ConfigMap.

kubectl -n <namespace> apply -f <certs.yaml>

Amend your Client Workload pod specification to provide your ConfigMap as a volume but do not deploy your Client Workload pod yet.
```
spec:
  volumes:
    - name: <cert-volume>
      configMap:
        name: <certs>
```
Deploy the Aembit Helm chart. Provide the name of your volume with the agentProxy.trustedCertificatesVolumeName parameter.
Terminal window
```
helm install aembit aembit/aembit \
  --set agentProxy.trustedCertificatesVolumeName=<cert-volume>
```

Deploy your Client Workload Pod.

kubectl -n <namespace> apply -f <client-workload-pod.yaml>

AWS ECS

To trust private CAs in AWS Elastic Container Service (ECS), pass them as a variable to the Aembit ECS Terraform module. This variable should be a Base64-encoded list of PEM-encoded certificates.

module "aembit-ecs" {
  source  = "Aembit/ecs/aembit"
  version = "1.12.0"

  ...

  aembit_trusted_ca_certs = "LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0...."
}

Virtual machines

Agent Proxy automatically trusts all certificates installed in the host system’s trust root certificate store. The following steps are you add them to the appropriate system trust root certificate store.

Debian or Ubuntu-based VM

Place your private CA certificate in /usr/local/share/ca-certificates/, ensuring the file contains PEM-encoded certificates and that the file extension is .crt. Then, execute the following commands:

sudo apt-get update && sudo apt-get install -y ca-certificates
sudo update-ca-certificates

Disable TLS verification

In rare circumstances, Server Workloads could use certificates that full TLS verification would normally reject. For example, a Server Workload may have a certificate with a mismatch between the service’s FQDN and its CN or Subject Alternative Name (SAN).

Aembit allows you to turn off TLS verification for specific Server Workloads.

In your Aembit Tenant, go to Server Workloads in the left sidebar.
Select the Server Workload you want to configure.

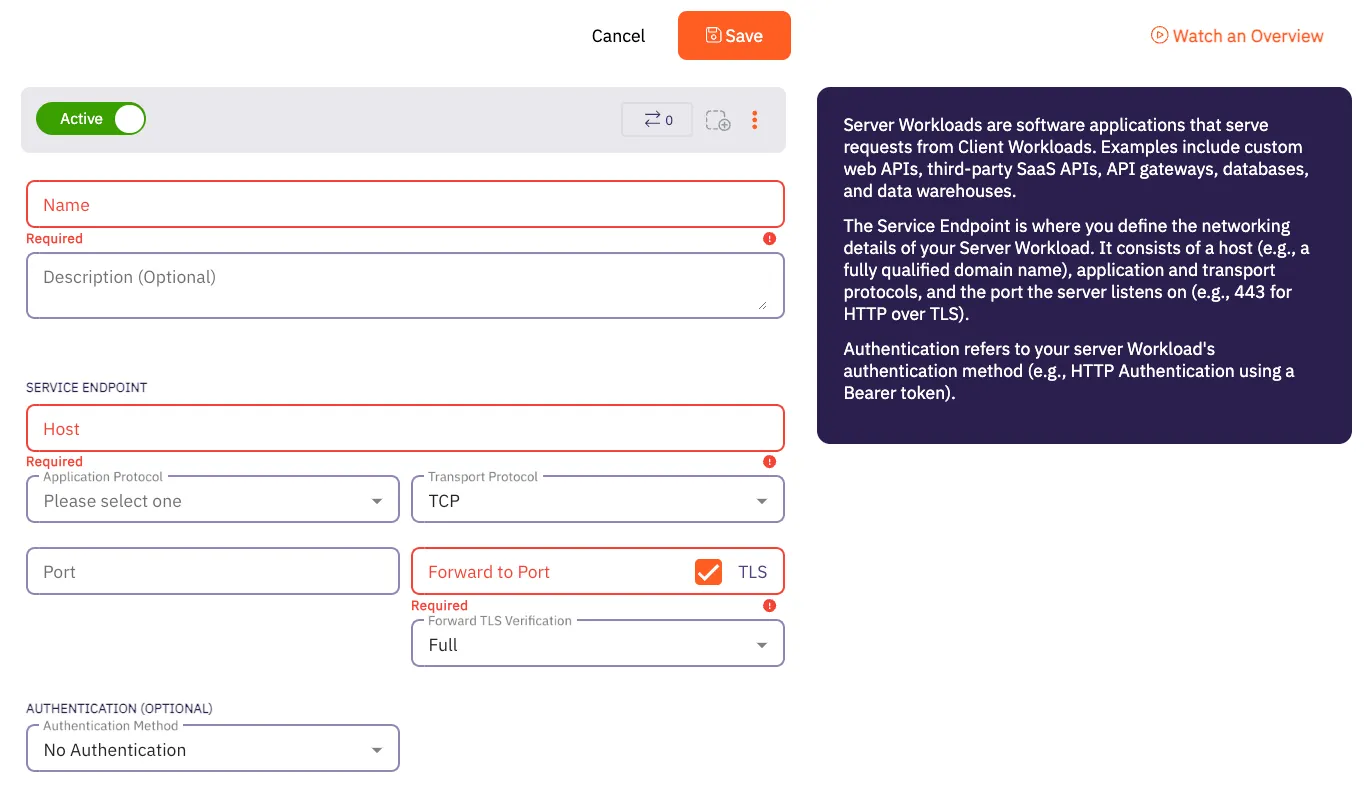

Find the Forward TLS Verification dropdown menu and select None.
