Create a JWT-SVID Token Credential Provider

The JWT-SVID Token Credential Provider enables secure identity token generation that complies with SPIFFE (Secure Production Identity Framework for Everyone) standards.

This credential provider is similar to the OIDC ID Token Credential Provider, but enforces SPIFFE-specific formatting requirements for the subject claim.

You can configure the following options for your JWT-SVID Token Credential Provider:

• Subject (SPIFFE ID) configuration with literal or dynamic values.
• Automatic issuer URL generation based on your tenant.
• Audience configuration for target system validation.
• Token lifetime settings (default 1 hour).
• Signing algorithms (RS256 and ES256).
• Custom claims for enhanced workload context.

Create a JWT-SVID Token Credential Provider

To create a JWT-SVID Token Credential Provider, follow these steps:

1. Log into your Aembit Tenant, and go to Credential Providers in the left sidebar.

2. (Optional) In the top right corner, select the Resource Set that you want this Credential Provider to reside.

3. Click + New, which displays the Credential Provider pop out menu.

4. Enter a Name and optional Description.

5. Under Credential Type, select JWT-SVID Token, revealing more fields.

6. Fill out the remaining fields:

   • Subject - Enter the SPIFFE ID that you want as the subject claim in the JWT-SVID.

     SPIFFE Format Required

     The subject must use SPIFFE formatting:

     spiffe://<trust-domain>/<workload-path>

     The subject always starts with spiffe:// followed by your <trust-domain> and <workload-path>. For example: spiffe://example.com/workload/api-service

     Choose how to specify the subject:

     • Literal - Enter a fixed SPIFFE ID (for example, spiffe://example.com/workload/api-service)

     • Dynamic - Use variables to generate SPIFFE IDs at runtime. Use the syntax ${expression} to create dynamic values.

       For example:

       • spiffe://your-domain/ns/${namespace}/sa/${serviceaccount} for Kubernetes
       • spiffe://your-domain/aws/account/${account}/role/${role} for AWS

   • Issuer - Aembit automatically generates this value based on your tenant information. The issuer URL identifies who created and signed the token.

   • Audience - Enter the identifiers that the receiving service expects in the aud claim. This can be a single string value (for example, my-service.example.com)

     The audience must match what your SPIFFE-aware target system expects for validation.

   • Lifetime - Specify how long (in minutes) your JWT-SVIDs remain valid after issuance.

     • Default: 15 minutes
     • Shorter lifetimes increase security
     • SPIFFE recommends tokens expire within 1 hour

   • Algorithm Type - Select the signing algorithm for your JWT-SVIDs:

     • RSASSA-PKCS1-v1_5 using SHA-256 (RS256) - Default, widely compatible
     • ECDSA using P-256 and SHA-256 (ES256) - Recommended for SPIFFE-compliant systems

7. (Optional) For Custom Claims, click + New Claim.

   Custom claims provide additional context about the workload identity. Common SPIFFE JWT-SVID custom claims include:

   • namespace - Kubernetes namespace
   • service_account - Kubernetes service account name
   • aws_account - AWS account ID
   • environment - Deployment environment (production, staging, etc.)
   • region - Geographic or cloud region
   • cluster - Kubernetes cluster name

   Then fill out the following:

   1. Enter Claim Name (for example: namespace, cluster, environment).

   2. For Value enter the value based on which type you choose:

      • Literal - Enter the exact string value to include in the token
      • Dynamic - Enter an expression using the syntax ${expression} to extract values from workload identity
   Dynamic claims examples for SPIFFE

   • Extract Kubernetes namespace: ${oidc.identityToken.decode.payload.namespace}
   • Extract service account: ${oidc.identityToken.decode.payload.service_account}
   • Extract AWS account: ${aws.account}
   • Environment variable: ${os.environment.CLUSTER_NAME}
   • Combine values: ${namespace}_${environment}

   For detailed information on dynamic claims syntax and examples, see Dynamic Claims for OIDC and JWT-SVID Tokens.

8. (Optional) Repeat the preceding step for each additional Claim.

9. Click Save.

Verify your JWT-SVID Token Credential Provider

To verify a JWT-SVID token is retrievable and formatted correctly, follow these steps:

1. In your Aembit Tenant, go to Credential Providers in the left sidebar.

2. Select the JWT-SVID Token from the list of Credential Providers that you want to verify.

   This reveals the Credential Provider pop out menu.

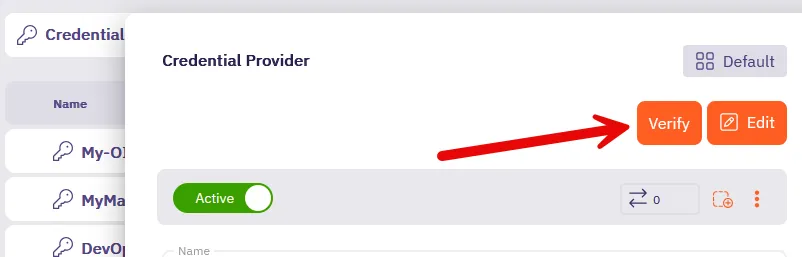

3. Click Verify at the top.



4. When successful, Aembit posts a green notification that says “Verified successfully”.

   The verification confirms:

   • Subject follows SPIFFE format (starts with spiffe://)
   • JWT header type set to “JWT”
   • Token includes the configured claims
   • Correct scope set for the credential provider
   • Token signing works with selected algorithm

   If the verification isn’t successful, double check your configuration to make sure all the values are correct, then try again. Common issues include:

   • Invalid SPIFFE ID format (must start with spiffe://)
   • Missing or invalid trust domain

JWKS endpoint for verification

SPIFFE-aware systems can verify JWT-SVIDs issued by Aembit using the public JWKS endpoint:

https://<your-tenant>.aembit.com/.well-known/jwks.json

This endpoint provides:

• Public keys for signature verification
• Support for both ES256 and RS256 algorithms
• Automatic key rotation management
• Standards-compliant JWKS format

Integration with SPIFFE-aware systems

Once configured, your JWT-SVID Token Credential Provider can authenticate workloads to:

• Service Meshes - Istio, Consul, Linkerd, and other SPIFFE-compliant service meshes
• SPIFFE Libraries - Applications using SPIFFE SDK libraries for token validation
• Zero Trust Platforms - Security platforms that validate SPIFFE identities
• Custom Services - Any service configured to validate JWT-SVIDs against Aembit’s JWKS endpoint

For more information about SPIFFE standards and implementation, see:

• SPIFFE JWT-SVID Specification
• How to Construct SPIFFE IDs
