Snyk

Overview​

Snyk is a security platform designed to help organizations find and fix vulnerabilities in their code, dependencies, containers, and infrastructure as code. It integrates into development workflows to maintain security throughout the software development lifecycle.

Below you can find the Aembit configuration required to work with the Snyk service as a Server Workload using the Snyk API.

Prerequisites

Before proceeding with the configuration, you need to have a Snyk tenant and an authorized Snyk App. If you have not created an app before, you can follow the steps outlined in the subsequent sections. For detailed information on how to create a Snyk App using the Snyk API or other methods, please refer to the official Snyk documentation.

Server Workload Configuration​

  1. Create a new Server Workload.
  • Name - Choose a user-friendly name.
  1. Configure the service endpoint:
  • Host - api.snyk.io
  • Application Protocol - HTTP
  • Port - 443 with TLS
  • Forward to Port - 443 with TLS
  • Authentication method - HTTP Authentication
  • Authentication scheme - Bearer

Credential Provider Configuration​

  1. Sign in to your Snyk account.

  2. In the lower-left corner of any page, click your profile name, then click Account Settings.

  3. On the General page, click to reveal your Key.

  4. Copy the Key and securely store it for later use in the app creation process using the Snyk API.

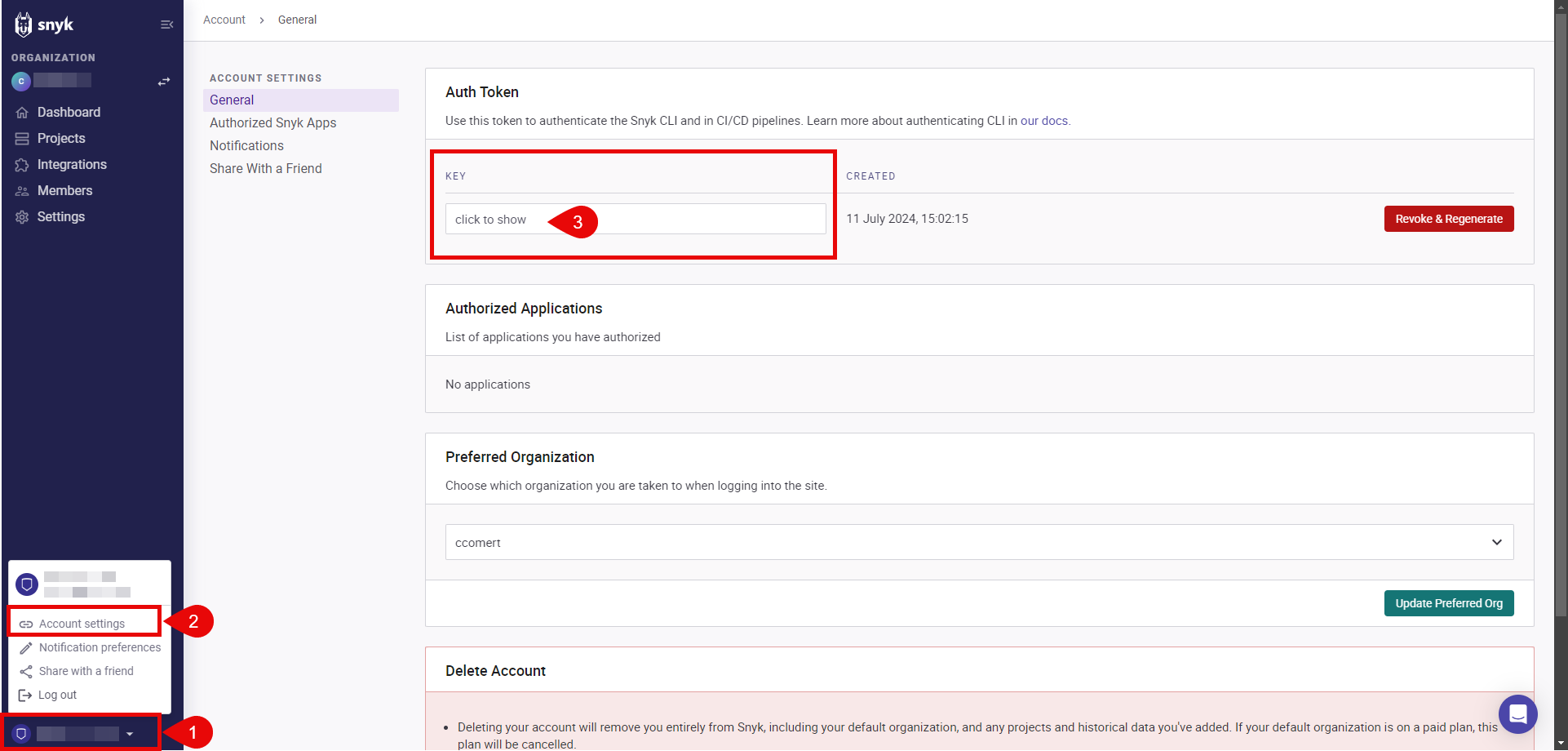

Snyk Copy Key

  1. Navigate to Settings in the left-hand menu, and choose General.

  2. Copy the Organization ID and securely store it for later use in the app creation process using the Snyk API.

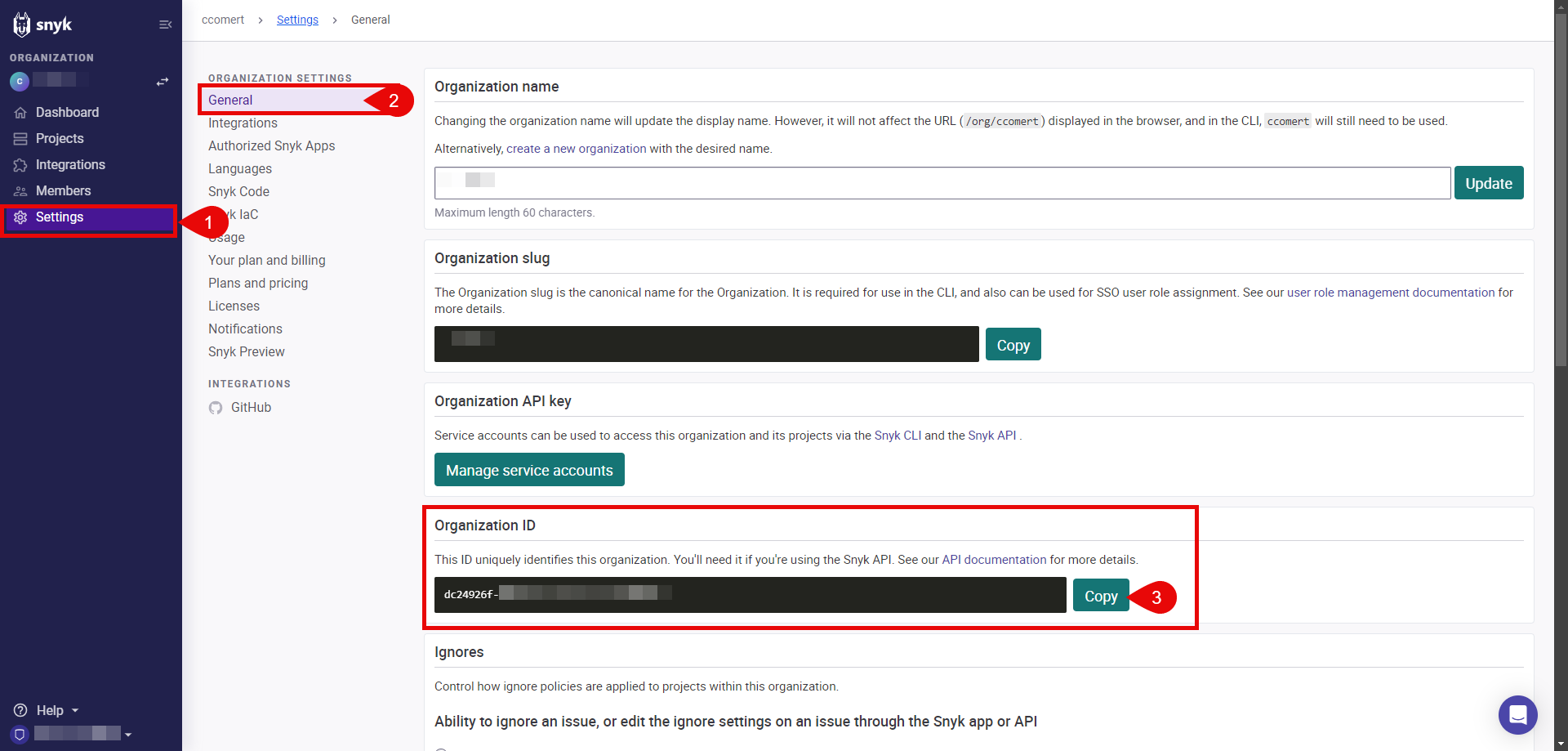

Snyk Copy Organization ID

  1. Switch to the Aembit UI to create a new Credential Provider, selecting the OAuth 2.0 Authorization Code credential type. After setting it up, copy the auto-generated Callback URL.

  2. Create a Snyk App:

To create a Snyk App, execute the following curl command. Make sure to replace the placeholders with the appropriate values:

  • REPLACE_WITH_API_TOKEN: This is the token you retrieved in Step 4.
  • REPLACE_WITH_APP_NAME: Provide a friendly name for your app that will perform OAuth with Snyk, such as "Aembit."
  • REPLACE_WITH_CALLBACK_URL: Use the callback URL obtained in the previous step.
  • REPLACE_WITH_SCOPES: Add the necessary scopes for your app. It is crucial to include the org.read scope, which is required for the refresh token. For a comprehensive list of available scopes, refer to the official Snyk documentation.
  • REPLACE_WITH_YOUR_ORGID: This is the organization ID you retrieved in Step 6.
curl -X POST -H "Content-Type: application/vnd.api+json" \
    -H "Authorization: token <REPLACE_WITH_API_TOKEN>" \
    -d '{"data": { "attributes": {"name": "<REPLACE_WITH_APP_NAME>", "redirect_uris": ["<REPLACE_WITH_CALLBACK_URL>"], "scopes": ["<REPLACE_WITH_SCOPES>"], "context": "user"}, "type": "app"}}' \
    "https://api.snyk.io/rest/orgs/<REPLACE_WITH_YOUR_ORGID>/apps/creations?version=2024-01-04"

The response includes important configuration details, such as the clientId and clientSecret, which are essential for completing the authorizing of your Snyk App.

  1. Edit the existing Credential Provider created in the previous steps.
  • Name - Choose a user-friendly name.
  • Credential Type - OAuth 2.0 Authorization Code
  • Callback URL (Read-Only) - An auto-generated Callback URL from Aembit Admin.
  • Client Id - Provide the clientId from the response of the curl command.
  • Client Secret - Provide the clientSecret from the response of the curl command.
  • Scopes - Enter the scopes you use, space delimited. (e.g. org.read org.project.read org.project.snapshot.read)
  • OAuth URL - https://snyk.io/
  • Authorization URL - https://app.snyk.io/oauth2/authorize
  • Token URL - https://api.snyk.io/oauth2/token
  • PKCE Required - On
  • Lifetime - 1 year (Snyk does not specify a refresh token lifetime; this value is recommended by Aembit.)

  1. Click Save to save your changes on the Credential Provider.

  2. In the Aembit UI, click the Authorize button. You are directed to a page where you can review the access request. Click Authorize to complete the OAuth 2.0 Authorization Code flow. You should see a success page and then be redirected to Aembit automatically. You can also verify your flow is complete by checking the State value in the Credential Provider. After completion, it should be Ready.

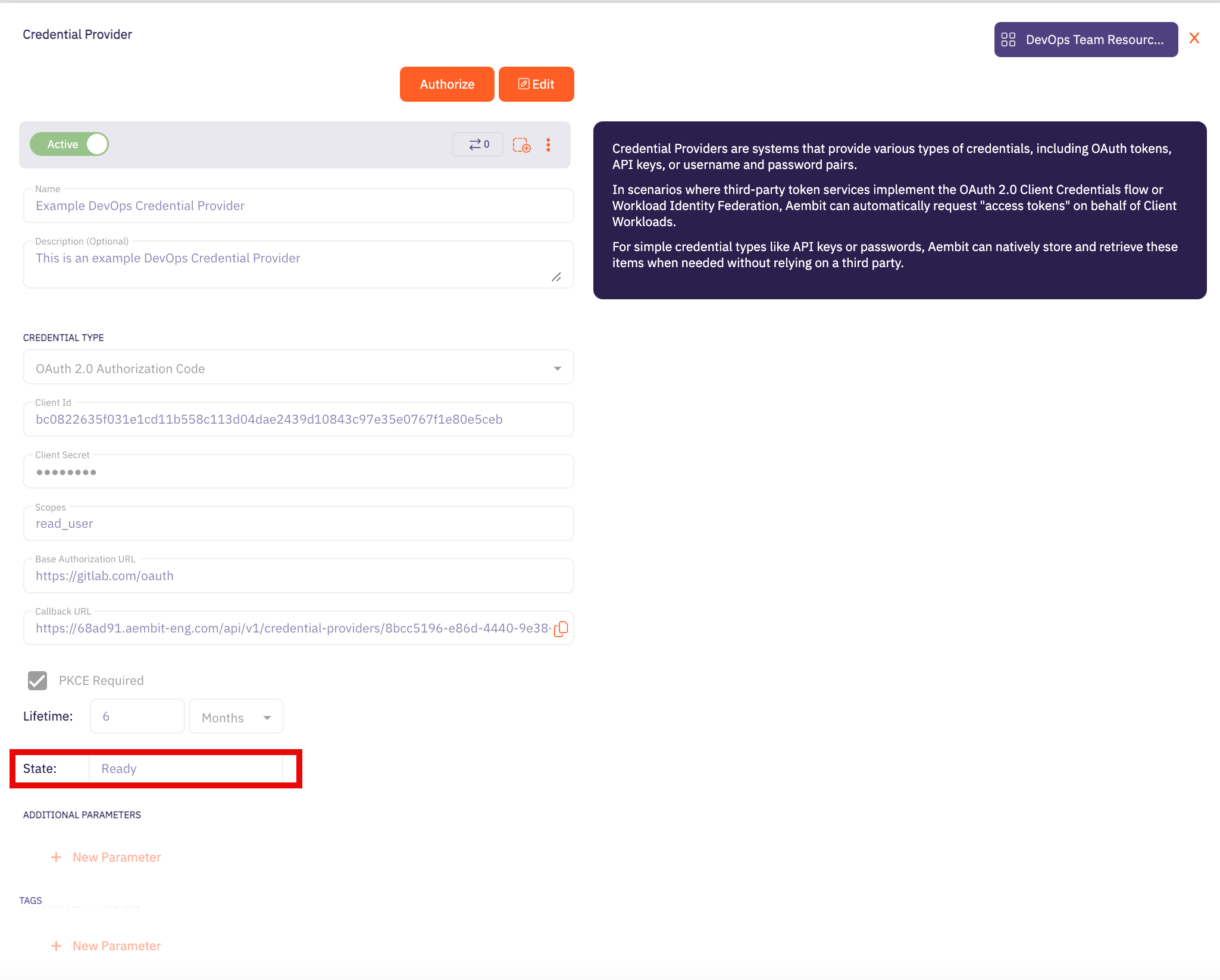

Credential Provider - Ready State

warning

Once the set lifetime ends, the retrieved credential will expire and will not work anymore. Aembit will notify you before this happens. Please ensure you reauthorize the credential before it expires.

Client Workload Configuration​

Aembit now handles the credentials required to access the Server Workload, eliminating the need for you to manage them directly. You can safely remove any previously used credentials from the Client Workload.

If you access the Server Workload through an SDK or library, it is possible that the SDK/library may still require credentials to be present for initialization purposes. In this scenario, you can provide placeholder credentials. Aembit will overwrite these placeholder credentials with the appropriate ones during the access process.

Access Policy​

  • Create an access policy for a Client Workload to access the Snyk Server Workload and assign the newly created Credential Provider to it.

Required Features​

  • You will need to configure the TLS Decrypt feature to work with the Snyk Server Workload.
