Access Authorization Events

Introduction

An access authorization event is a system-generated event that occurs whenever an entity requests access to Aembit managed Server Workloads. When an access request is received, events are generated with detailed information about the request and provide a granular view of the steps taken to evaluate the request against an existing Access Policy. Once a request is processed and the evaluation is complete, a result is generated, specifying whether access was granted or denied (success or failure).

Having the ability to view information about these access authorization events enables you to not only troubleshoot issues, but also have a historical records of these events. You may also use these logs to perform threat detection analysis to ensure malicious actors and workloads do not gain access to your resources.

Event Types

There are (3) different types of access authorization events that you may view in the Aembit Reporting dashboard:

• Access Request
• Access Authorization
• Access Credential

Access Request Events

An access.request event captures the request and associated metadata.

An example of an access.request event type is shown below.

{
  "meta": {
    "clientIP": "1.2.3.4",
    "timestamp": "2024-09-14T20:29:11.0689334Z",
    "eventType": "access.request",
    "eventId": "5b788a92-accd-49a1-851f-171f7c20d355",
    "resourceSetId": "ffffffff-ffff-ffff-ffff-ffffffffffff",
    "contextId": "4e876ace-d1b0-4095-ac22-f9c0fb7e676a",
    "severity": "Info"
  },
  "clientRequest": {
    "version": "1.0.0",
    "network": {
      "sourceIP": "10.0.0.15",
      "sourcePort": 53134,
      "transportProtocol": "TCP",
      "proxyPort": 8080,
      "targetHost": "server.domain.com",
      "targetPort": 80
    }
  }
}

Access Authorization

In an access.authorization event, you can view detailed information about the steps Edge Controller undertakes to evaluate an Access Policy. Information shown in an access.authorization event includes event metadata, the outcome of the evaluation, and detailed information about Client Workloads, Server Workloads, Access Policies, Trust Providers, Access Conditions and Credential Provider.

The example below shows the type of data you should expect to see in an access.authorization event.

{
  "meta": {
    "clientIP": "1.2.3.4",
    "timestamp": "2024-09-14T20:29:11.0689334Z",
    "eventType": "access.authorization",
    "eventId": "5b788a92-accd-49a1-851f-171f7c20d355",
    "resourceSetId": "ffffffff-ffff-ffff-ffff-ffffffffffff",
    "contextId": "4e876ace-d1b0-4095-ac22-f9c0fb7e676a",
    "severity": "Info"
  },
  "outcome": {
    "result": "Unauthorized",
    "reason": "Attestation failed"
  },
  "clientWorkload": {
    "id": "7c466803-9dd4-4388-9e45-420c57a0432c",
    "name": "Test Client",
    "result": "Identified",
  },
  "serverWorkload": {
    "id": "49183921-55ab-4856-a8fc-a032af695e0d",
    "name": "Test Server",
    "result": "Identified",
  },
  "accessPolicy": {
      "id": "dd987f8c-34fb-43e2-9d43-89d862e6b7ec",
      "name": "Test Access Policy",
      "result": "Identified",
  }
  "trustProviders": [{
      "id": "24462228-14c1-41a4-8b23-9be789b48452",
      "name": "Kerberos",
      "result": "Attested"
    },{
      "id": "c0bd6c06-71ce-4a87-b03c-4c64cb311896",
      "name": "AWS Production",
      "result": "Unauthorized",
      "reason": "InvalidSignature"
    },{
      "id": "5f0c2962-2af4-4b5f-97c0-9046b37198a9",
      "name": "Kubernetes",
      "result": "Unauthorized",
      "reason": "MatchRuleFailed",
      "attribute": "serviceNameUID",
      "expectedValue": "foo",
      "actualValue": "bar",
  }],
  "accessConditions": [],
  "credentialProvider": {
    "id": "bb7927f8-060c-4486-9a5e-bcbe1efc53d6",
    "name": "Production PostgreSQL",
    "result": "Identified",
    "maxAge": 60,
  }
}

Authorization Failure

If an authorization request fails during the check, a reason property value is returned in either the Trust Providers and/or Access Conditions entities notifying you that a failure has occurred, and providing you a reason for the failure. By providing you a reason for the failure, you can then use this information to diagnose and troubleshoot the issue.

There are several different types of reason values that can be returned with a failure. Some of these values could be:

• NoDataFound - Attestation was not successful because the data necessary for attestation was not found.
• InvalidSignature - The cryptographic verification check failed.
• MatchRuleFailed - The match rules for the Trust Provider were not met.
• ConditionFailed - The Access Condition check failed.

In the example shown above, notice that the Trust Providers check failed.

For the Trust Provider ID 5f0c2962-2af4-4b5f-97c0-9046b37198a9 here for this example, the reasons specified in the JSON response are:

• MatchRuleFailed

With this information, you can determine that not only did Trust Provider fail the AWS Production cryptographic check, but the check was also unable to match the Trust Provider to an existing match attribute for that Trust Provider (the check was looking for ServiceNameUID with the expected value foo). Now that you know why the failure occurred, you can troubleshoot the issue.

Access Credential

The access.credential event type shows the result of the Edge Controller retrieval attempt of the required credential when requested. If the request was successful, the Edge Controller acquires credentials for the Server Workload via the Credential Provider and the event will specify the result as Retrieved.

The example below shows what you should expect to see in an access.credential event.

{
  "meta": {
    "clientIP": "1.2.3.4",
    "timestamp": "2024-09-14T20:29:11.0689334Z",
    "eventType": "access.credential",
    "eventId": "5b788a92-accd-49a1-851f-171f7c20d355",
    "resourceSetId": "ffffffff-ffff-ffff-ffff-ffffffffffff",
    "contextId": "4e876ace-d1b0-4095-ac22-f9c0fb7e676a",
    "severity": "Info"
  },
  "outcome": {
    "result": "Authorized",
  },
  "clientWorkload": {
    "id": "7c466803-9dd4-4388-9e45-420c57a0432c",
    "name": "Test Client",
    "result": "Identified",
  },
  "serverWorkload": {
    "id": "49183921-55ab-4856-a8fc-a032af695e0d",
    "name": "Test Server",
    "result": "Identified"
  },
  "accessPolicy": {
      "id": "dd987f8c-34fb-43e2-9d43-89d862e6b7ec",
      "name": "Test Access Policy",
      "result": "Identified"
  }
  "trustProviders": [{
      "id": "49183921-55ab-4856-a8fc-a032af695e0d",
      "name": "Kerberos",
      "result": "Attested"
  }],
  "accessConditions": [],
  "credentialProvider": {
    "id": "bb7927f8-060c-4486-9a5e-bcbe1efc53d6",
    "name": "Production PostgreSQL",
    "result": "Retrieved",
    "maxAge": 60,
  }
}

Credential Failure

If an credential request fails during the check, a reason property value is returned with the Credential Provider entity notifying you that a failure has occurred, and providing you a reason for the failure. By providing you a reason for the failure, you can then use this information to diagnose and troubleshoot the issue.

There may be several reasons why credential request fails. Some of these reasons may be:

• Token expired - The requested token has expired.
• Request failed with BadRequest - There was a communication error with the credential provider. Note: This will include the encountered HTTP status code.
• Aembit Internal Error - There was an internal Aembit error during the credential retrieval.
• Unknown error - An unexpected error occurred during credential retrieval and is being investigated by Aembit support.

With this information, you can determine the reason for the failure and then troubleshoot the issue.

Retrieving Access Authorization Event Data

To retrieve detailed information about access authorization events, perform the steps described below.

1. Log into your Aembit tenant.

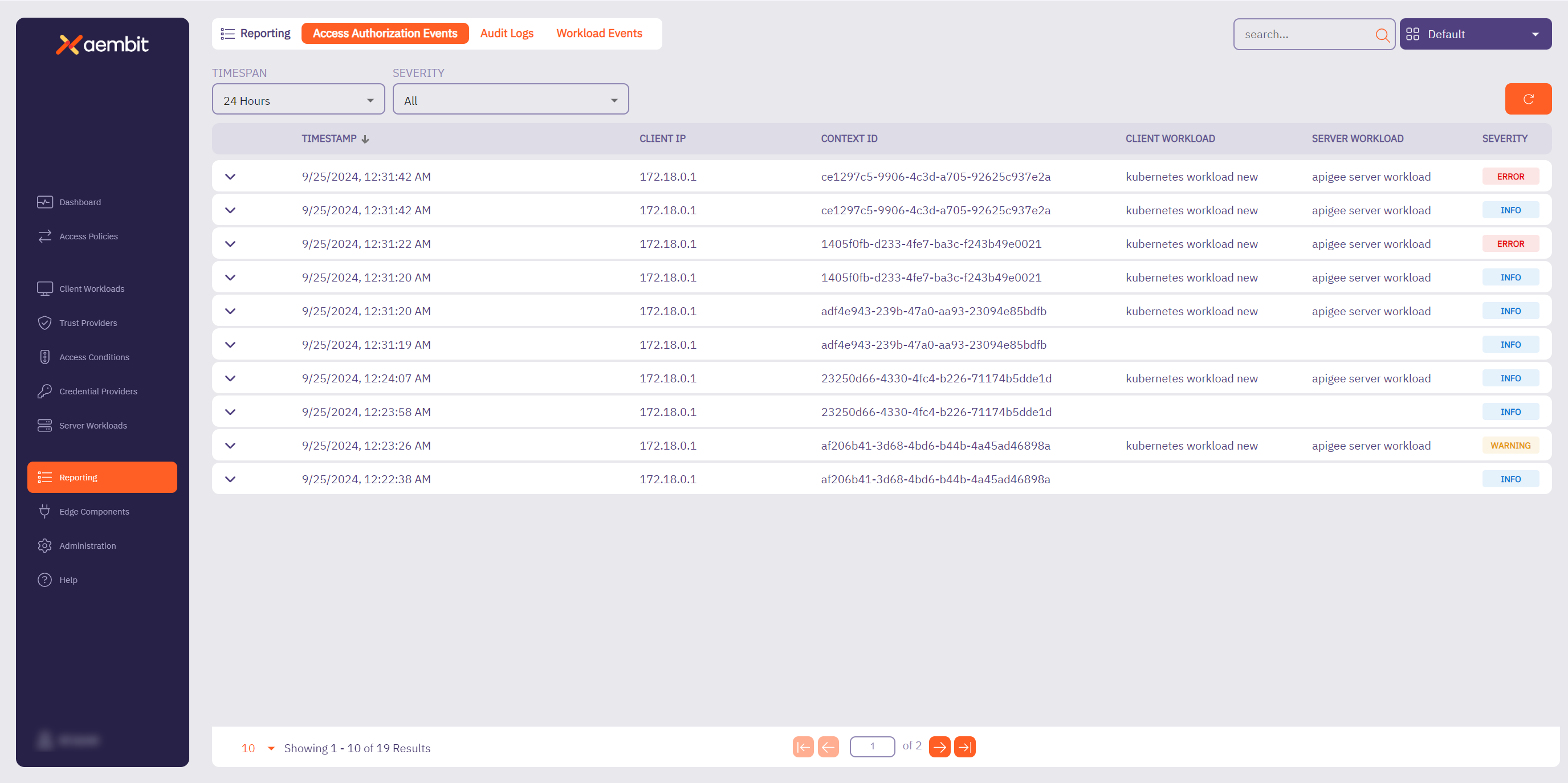

2. Once you are logged in, click on the Reporting link in the left navigation pane. You are directed to the Reporting Dashboard page.

note

By default, when you navigate to the Reporting Dashboard, access authorization events data is displayed.

You will see two dropdown menus at the top of the page that enable you to filter and sort the results displayed:

• Timespan - The period of time you would like to have event data displayed.
• Severity - The level of importance of the event.

note

When the Access Authorization Events page loads, the page loads with default display filters of: Timespan = 24 Hours, and Severity = All.

3. Select the period of time you would like to view by clicking on the Timespan dropdown menu. Options are:

   • 1 hour, 3 hours, 6 hours, 12 hours, or 24 hours.

4. Select the severity level of the results you would like to view by clicking on the Severity dropdown menu. Options are:

   • Error, Warning, Info, or All

5. Once you have selected your filtering options, the table displays access authorization event information based on these selections.

Viewing Access Authorization Event Data

When you select an access authorization event from the dashboard, you can expand the view to display detailed data for that event. Depending on the event type, different data is displayed. The sections below show example of the type of data that may be displayed with an event.

Access Authorization Event Example

If you would like to review detailed information about an access authorization event, click on the event. This expands the view for that event, enabling you to see both a summary of the event (on the left side of the information panel) with quick links to each entity, and detailed JSON output (on the right side of the information panel), including event metadata.

Depending on the type of access authorization event, the information presented in the expanded view will be specific to that event type.

For example, if you review an example below shows an event where Trust Provider attestation failed.

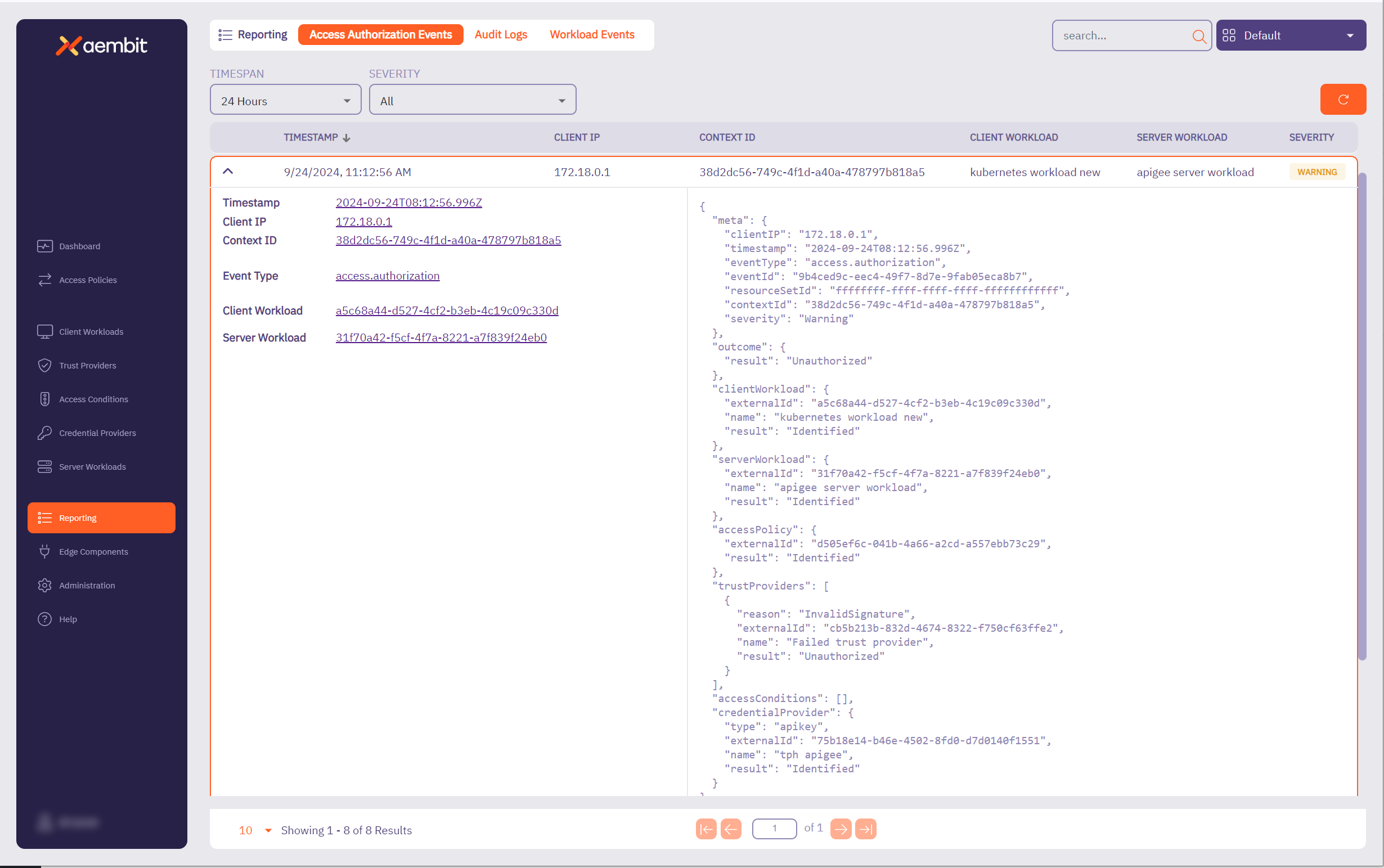

Trust Provider Attestation Failure Example

In the example below, you can see detailed information about an access authorization event that shows a failure because the Trust Provider could not be attested.

In the left side of the information panel, you see the following information displayed:

• Timestamp - The time when the event was recorded.
• Client IP - The client IP address that made the access authorization request. This will typically be a network egress IP from your edge environment.
• Context ID - ID used to associate the relevant access authorization events together.
• Event Type - The type of event that was recorded.
• Client Workload - The identified Client Workload ID.
• Server Workload - The identified Server Workload ID.

note

Each of these entities has a quick link, enabling you to go directly to that entity.

In the right side of the information panel, you see the more granular, detailed information displayed about each of these entities, including:

• Meta - Metadata associated with the event. Information includes clientIP, timestamp, eventType, contextId, directiveId, and severity
• Outcome - The result of the access authorization request. Options are Authorized, Unauthorized, or Error.
• Client Workload - The Client Workload used in the access authorization request. Detailed information includes id, name, result, and matches. Note that the matches value is optional, and is only rendered if multiple Client Workloads are matched.
• Server Workload - The Server Workload used in the access authorization request. Detailed information about the Server Workload includes id, name, result, and matches. Note that the matches value is optional, and is only rendered if multiple Server Workloads are matched.
• Access Policy - The Access Policy used to evaluate the access authorization request. Information includes id, name, result, and matches.
• Trust Providers - The Trust Providers assigned to the Access Policy at the time of evaluation. Information in the JSON response includes id, name, result, attribute, expectedValue, and actualValue. The reason, attribute, expectedValue and actualValue fields are all optional; however,in the case of Trust Provider attestation failure, you will see the reason field populated. If a reason value is returned, refer to the Authorization Failure section on this page for more information.
• Access Conditions - The Access Conditions assigned to the Access Policy at the time of evaluation. Information in the JSON response includes id, name, result, attribute, expectedValue, and actualValue. The reason, attribute, expectedValue and actualValue fields will only be returned if there is a failure, and the reason for the failure is ConditionFailed.
• Credential Provider - The Credential Provider used in the access authorization request. Detailed information includes id, name, result, and maxAge values. Note that there is the possibility of a reason value being returned if a failure occurs during credential retrieval. If a reason value is returned, refer to the Credential Failure section on this page for more information.
