Tenant Configuration

Troubleshooter Tool

Several common misconfigurations can occur. Aembit provides a troubleshooter tool that can detect such misconfigurations.

1. Sign into your Aembit cloud tenant.
2. Click on the Help link in the left navigation pane.

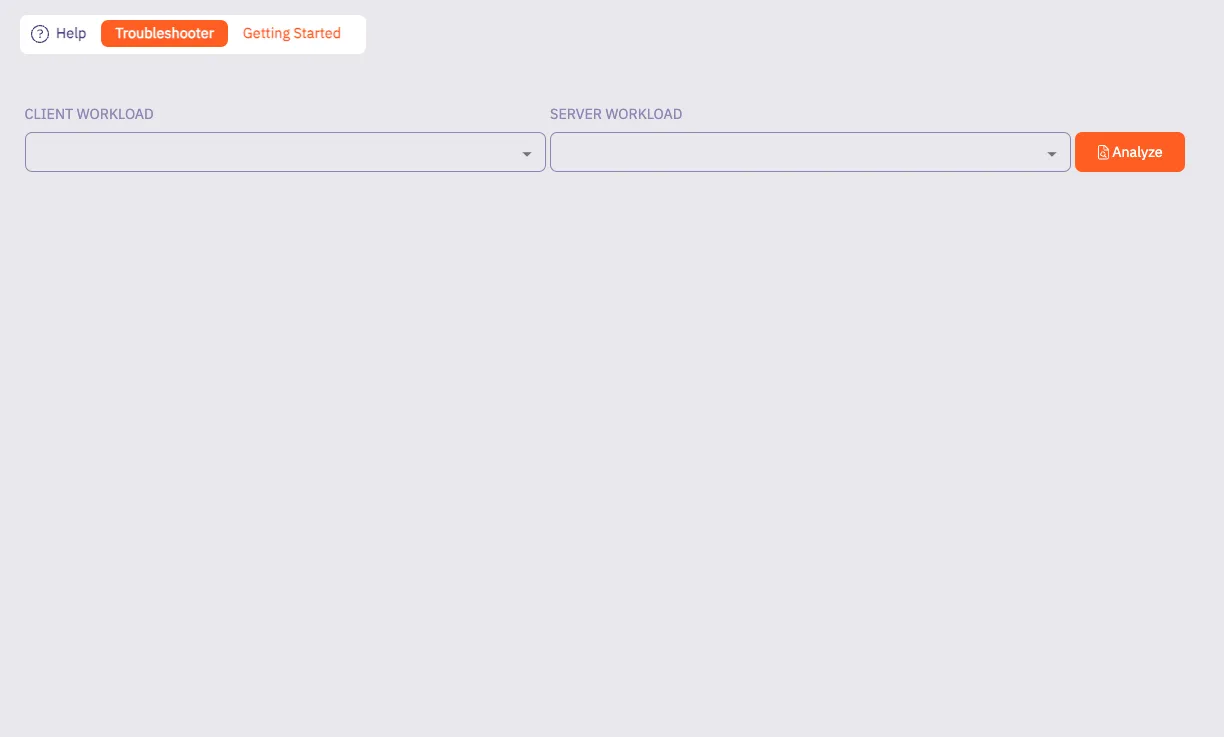

3. You will be directed to the Troubleshooter tool.

4. Choose the appropriate Client Workload and Server Workload.
5. Click the Analyze button.

You will be presented with a view showing various checks that were performed:

• Access Policy Checks

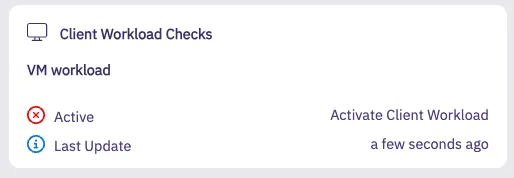

• Client Workload Checks
• Trust Provider Checks

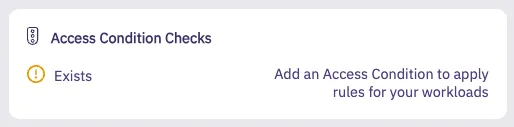

• Access Condition Checks

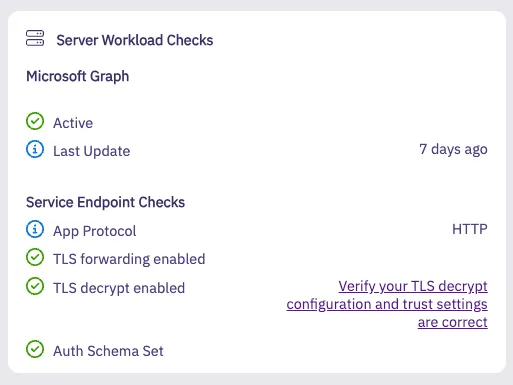

• Server Workload Checks

The checks could be in several states:

• A green checkbox icon indicates that the check successfully passed.
• A blue information icon presents general information.
• A yellow exclamation icon indicates that additional configuration may be considered; however, the current configuration is supported and operational.
• A red cross icon indicates that such a configuration will prevent the Client Workload from successfully authenticating to the Server Workload. Such a misconfiguration will have an action item on the right indicating how to rectify the issue.

Credential Provider Verification

Some Credential Providers, like OAuth 2.0 Client Credentials, allow for the verification of credentials.

1. Sign into your Aembit cloud tenant.
2. Click on the Credential Providers link in the left navigation pane.
3. Click on a Credential Provider.
4. Click the Verify button.

You will be notified whether the verification succeeded or failed.

In the case of verification failure, please check the credential provider’s details for accuracy.
