Configure an Azure Entra WIF Credential Provider

Aembit’s Credential Provider for Microsoft Azure Entra Workload Identity Federation (WIF) enables you to automatically obtain credentials through Aembit as a third-party federated Identity Provider (IdP). This allows you to securely authenticate with Azure Entra to access your Azure Entra registered applications and managed identities. For example, to assign API permissions or app roles to you registered applications or managed identities.

You can configure the Azure Entra Credential Provider using the Aembit web UI or through the Aembit Terraform provider.

Prerequisites

To configure an Azure Entra Credential Provider, you must have and do the following:

• Ability to access and manage your Aembit tenant.

• Ability to access and manage either of the following:

  • Microsoft Entra registered application

  • Microsoft Managed Identity

• You request only one resource per Azure Entra Credential Provider

  See detailed example

  Azure’s architecture requires that you request only one resource per Azure Entra Credential Provider.

  For example, when you need to access both Microsoft Graph and Azure Management, you must configure the following:

  • Two distinct Credential Providers:

    • One requesting the https://graph.microsoft.com/.default scope

    • Another requesting the https://management.azure.com/.default scope

  • Two distinct Server Workloads:

    • One for graph.microsoft.com

    • Another for management.azure.com

  • In your Access Policies, map each Credential Provider to its respective Server Workload.

• Terraform only:

  • You have Terraform installed.

  • You have the Aembit Terraform Provider configured.

Configure a Credential Provider for Azure Entra

This section explains how to configure an Azure Entra Credential Provider in the Aembit web UI that requests a single Azure Entra resource. These steps assume you already have a Microsoft Entra registered application (see Prerequisites).

You must configure the Aembit Credential Provider at the same time as the Azure Entra registered application credential.

Tip

It’s best to have your Azure Entra registered application open in the Azure Entra Portal in a different browser window alongside the Aembit web UI while configuring the Credential Provider.

Create a Credential Provider

1. Log in to your Aembit tenant, and in the left sidebar menu, go to Credential Providers.

2. Click + New, which reveals the Credential Provider page.

3. Enter a Name and optional Description.

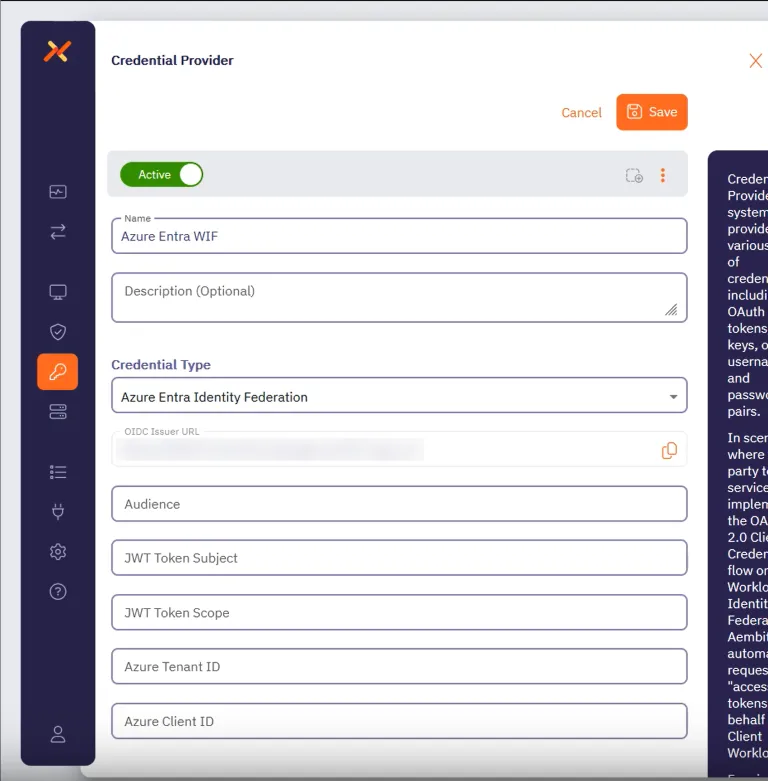

4. In the Credential Type dropdown, select Azure Entra Identity Federation, revealing new fields.



   Before filling out these fields, you must add the credential for your Azure Entra registered application in the Azure Entra Portal first.

   Keep the Aembit web UI open while you work on the next section.

Add a credential for your Azure Entra registered app

In the Azure Entra Portal, create a new credential for your registered application:

1. In your Azure Entra Portal, go to App registrations and select your registered application from the list.

2. Go to Manage —> Certificates & secrets and select the Federated Credentials tab.

3. Click Add credential, to reveal the Add a credential page and fill out the following sections (for quick reference, see the mappings section):

4. For Connect your account:

   • Federated credential scenario - Select Other issuer

   • Issuer - From the Aembit Credential Provider page, copy and paste the OIDC Issuer URL

   • Type - Select Explicit subject identifier

   • Value - Enter the desired value (this must match the JWT Token Subject value on the Aembit Credential Provider page)

5. For Credential details:

   • Name - Enter the desired name

   • Audience - Use the default value or optionally change it to the desired value (this must match the Audience value on the Aembit Credential Provider page)

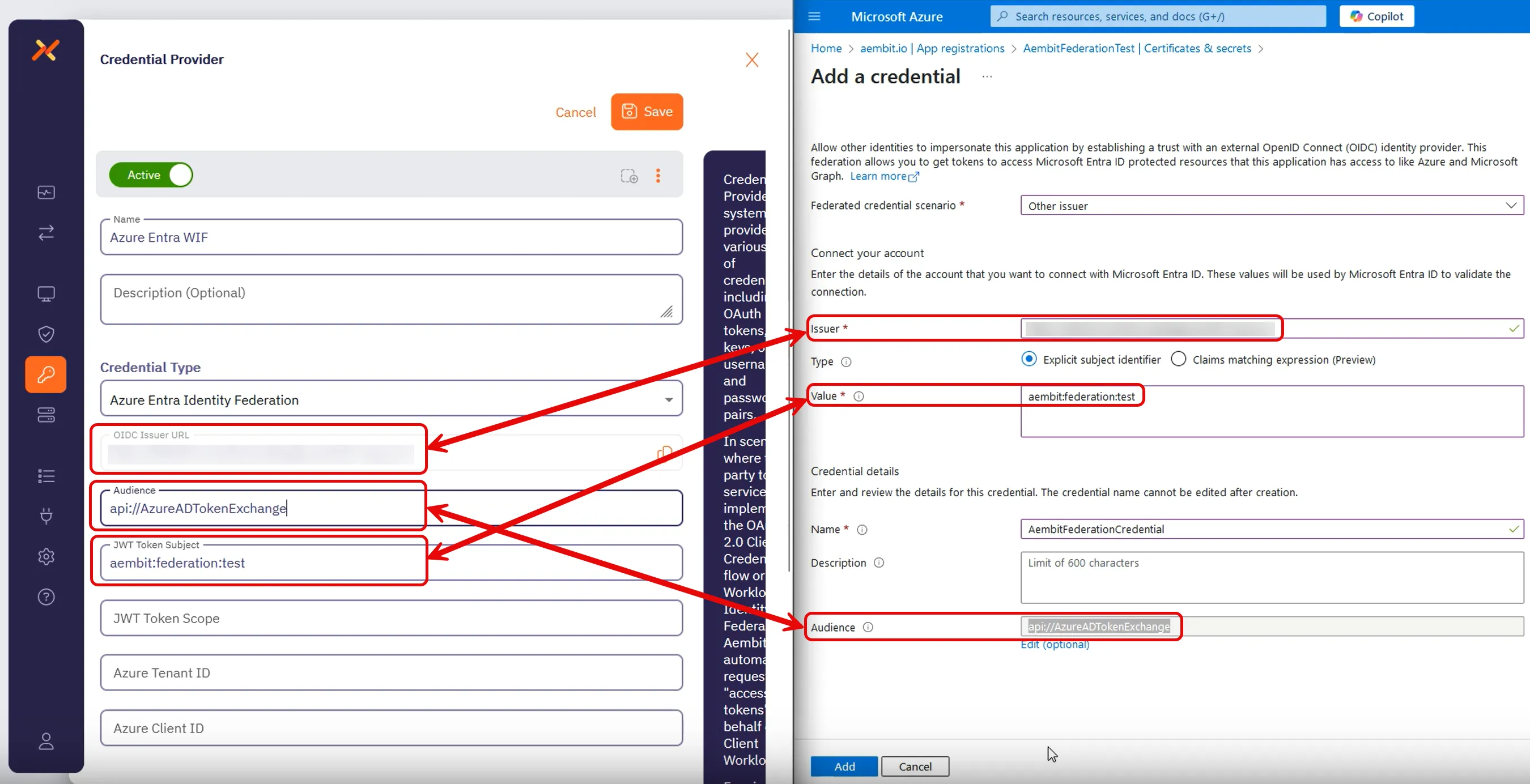

   Your Aembit Credential Provider UI and Entra registered application credential should look similar to the following example:



6. Click Add and your new credential shows up on the Federated credentials tab in Azure Entra.

7. While still on your registered application, go to the Overview section.

   Keep the Azure Entra Portal open to use it in the next section.

Complete the Credential Provider in the Aembit web UI

Go back to the Aembit web UI, and complete the Credential Provider page:

1. For JWT Token Scope, enter the scope of the resource you want to request.

   For example, for Microsoft Graph, use https://graph.microsoft.com/.default.

2. Use the info from your Azure Entra registered application’s Overview page to complete the remaining fields for the Aembit Credential Provider (for quick reference, see the mappings section):

   1. Azure Tenant ID - copy and paste the Directory (tenant) ID.

   2. Azure Client ID - copy and paste the Application (client) ID.



3. Click Save.

   Your Azure Entra Credential Provider now displays in your list of Credential Providers in the Aembit web UI.

Verify the connection

To verify the connection between your Aembit Credential Provider and your Azure Entra registered application:

1. On the Credential Providers page, select the Credential Provider you just created.

2. Click Verify.

   After a few moments you should see a green banner display a “Verified Successfully” message.

   If you don’t receive a “Verified Successfully” message, go back through the values in your Credential Provider in the Aembit UI and the credential in your Azure Entra registered application to make sure they’re correct.

You’re now ready to use your Credential Provider for Azure Entra Workload Identity Federation with your Server Workloads in an Aembit Access Policy!

Configure Azure Entra using the Aembit Terraform provider

To configure an Azure Entra Credential Provider using the Aembit Terraform Provider, follow the steps in this section.

OIDC Issuer URL

When using the Aembit Terraform Provider, you won’t have the OIDC Issuer URL the Azure credential requires until after you apply the Terraform configuration successfully.

Make sure you leave the Azure Entra Add a credential page open until after you have successfully applied the Terraform configuration. Then copy the value for oidc_issuer from the applied Terraform configuration to the Issuer field in the Add a credential page.

1. Follow the steps to Add a credential for your Azure Entra registered app.

   Leaving the Issuer blank and stopping before you add the new credential.

   Keep this page open as you’ll need some values from it.

2. Create a new Terraform configuration file (such as azure-wif.tf) with the following structure:

   provider "aembit" {
   }

   resource "aembit_credential_provider" "azureEntra" {
     name = "<Desired Credential Provider Name>"
     is_active = true
     azure_entra_workload_identity = {
       audience = "<Audience from Azure Federated Credentials creation page>"
       subject = "<Subject from Azure Federated Credentials creation page>"
       scope = "<Scope within Microsoft ecosystem for the Access Token>"
       azure_tenant = "<Azure Tenant ID from Azure Entra Application or Managed Identity>"
       client_id = "<Azure Client ID from Azure Entra Application or Managed Identity>"
     }
   }

   Example Terraform resource file for Microsoft Graph

   provider "aembit" {
   }

   resource "aembit_credential_provider" "azureEntra" {
     name = "Azure Entra WIF"
     is_active = true
     azure_entra_workload_identity = {
       audience = "api://AzureADTokenExchange"
       subject = "aembit:federation:test"
       scope = "https://graph.microsoft.com/.default"
       azure_tenant = "7f492ad1-25ec-4bfe-9c3a-84b517de8f2c"
       client_id = "3d845691-7abc-4def-a123-456789abcdef"
     }
   }

3. Apply the Terraform configuration:

   terraform apply

4. After the Terraform apply completes successfully, the Aembit Terraform provider generates an OIDC Issuer URL as the value for oidc_issuer.

   Run the following command to obtain the value for oidc_issuer:

   terraform state show aembit_credential_provider.azureEntra

5. Copy the URL from oidc_issuer and return to the Azure Portal’s Add a credential page.

6. Paste the URL from oidc_issuer into the Issuer field.

7. Click Add and your new credential shows up on the Federated credentials tab in Azure Entra.

You’re now ready to use your Credential Provider for Azure Entra Workload Identity Federation with your Server Workloads in an Aembit Access Policy!

Azure Entra and Credential Provider UI value mappings

The following table shows how the different value in Azure Entra from your registered application map to the required values to the Aembit Credential Provider web UI and Terraform provider:

Aembit Credential Provider value	Azure Entra credential value	Azure UI location	Terraform value
OIDC Issuer URL	Account Issuer	Registered app credential	Auto-populated
Audience	Credential Audience	Registered app credential	audience
JWT Token Subject	Account Value	Registered app credential	subject
Azure Tenant ID	Directory (tenant) ID	Your app’s Overview	azure_tenant
Azure Client ID	Application (client) ID	Your app’s Overview	client_id
